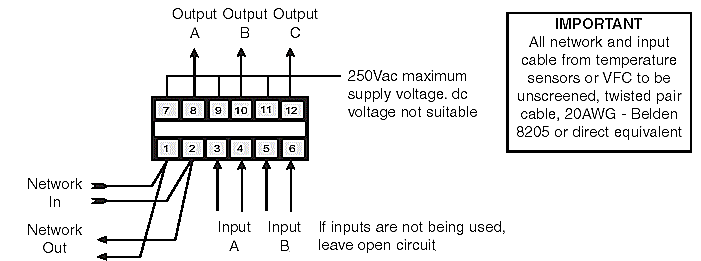

Wiring Diagram

Fan Coil Controller
with 3x Triac Outputs (3T version)


FCU / DIN / 3T/ [driver option]

Outputs are triacs rated 1A at 230V.

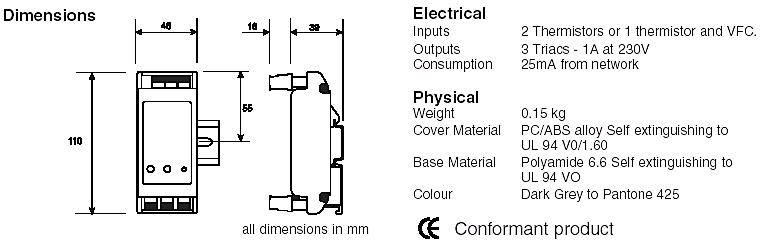

Specifications

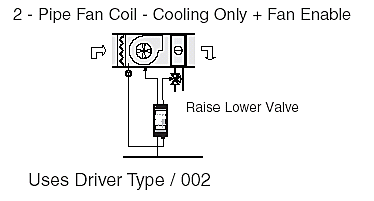

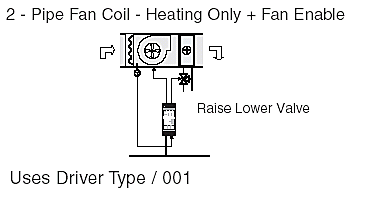

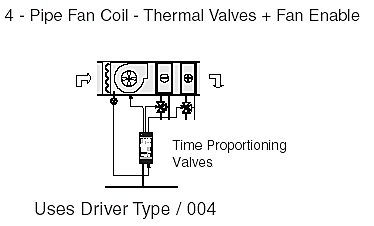

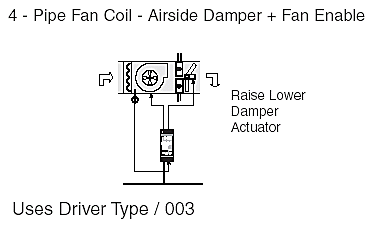

Typical Examples

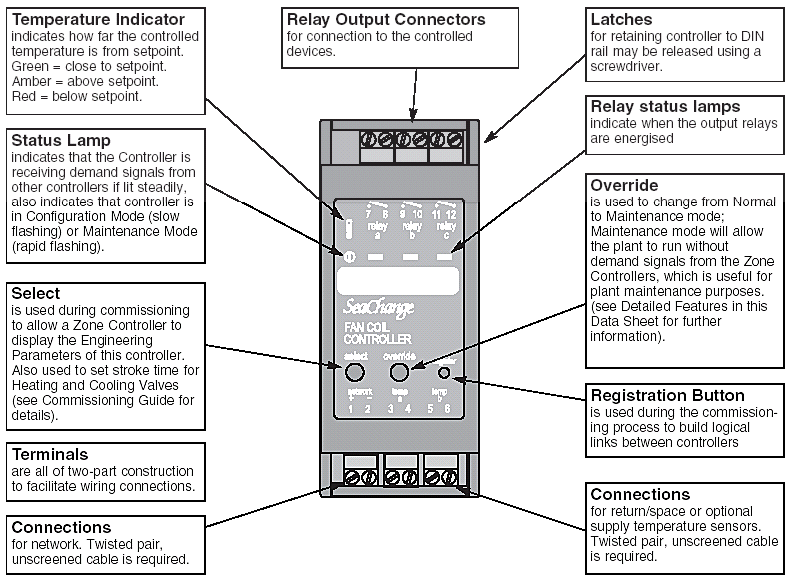

Typical Features
