Wiring Diagram

Air Handing Unit Humidity Submodule
with 3 x Triac Outputs (3T version)
with 2 x 0-10V DC Outputs (AOP version)


HUM / DIN / 3T/ [driver option]
HUM / DIN / AOP/ [driver option]

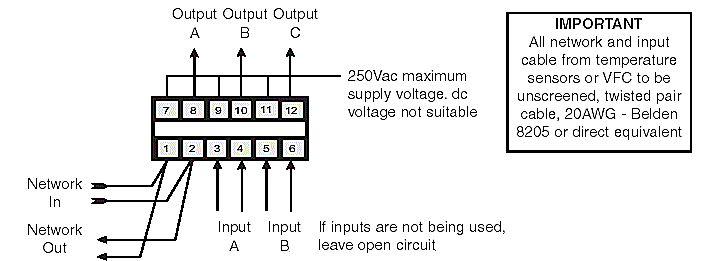

Wiring Diagram 3T Version

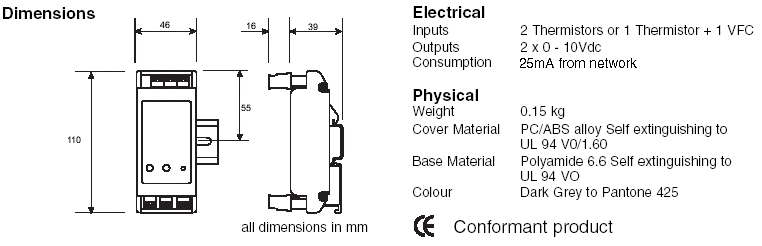

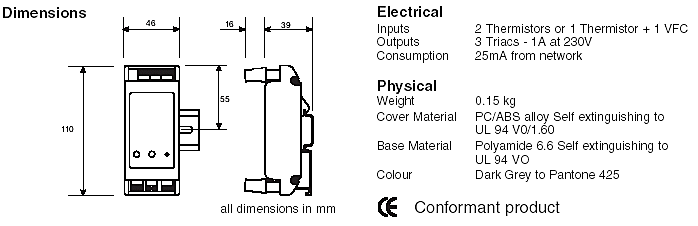

Specifications

Typical Examples

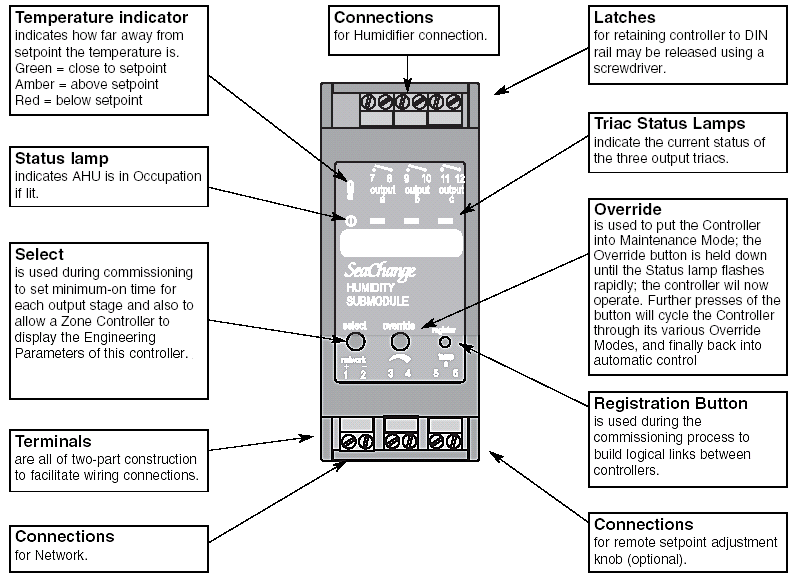

Typical Features

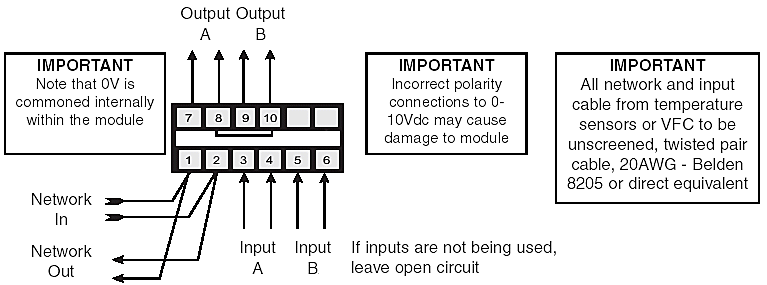

Wiring Diagram AOP Version
